The high energy of the laser is used to instantaneously ablatethe foreign matter wound on the high voltage line without

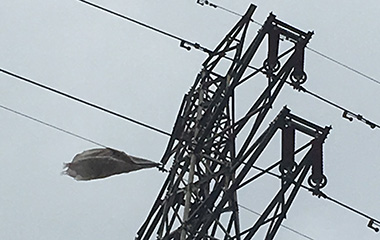

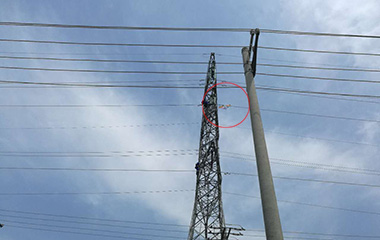

damaging the transmission line, If there is foreign matter hanging on the guide ground line of the transmission line ,the

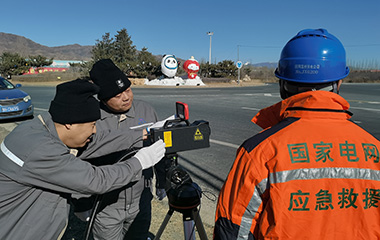

operatoe can aim at the target by sighting device,controlling the laser to emit laser,melt the foreign matter by burning
for a few seconds,then close the laser ,completing the entire live processing of foreign matter
|
Description
|
Cyclone-50
|
Cyclone-100
|
Cyclone-200
|
Cyclone-300
|
Cyclone-500
|
Cyclone-1000
|
|
Size (h x w x d) [mm³]
|
312*495*447
|
515*360*245
|
630*490*312
|
610*440*326
|
610*440*326
|
610*440*326
|
|
Weight (approx.) [kg]
|
<3
|
20
|
33.5
|
26.5
|
29.5
|
35
|
|
cooling system
|
air cooling
|
air cooling
|
air cooling
|
air cooling
|
air cooling
|
air cooling
|
|
Laser power [W]
|
50
|
100
|
200
|
300
|
500
|
1000
|
Laser control range[%]
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
10-100%
|
|
Wavelength [nm]
|
1064
|
1064
|
1064
|
1064
|
1064
|
1064
|
|
Battery specification[V AH]
|
24V 53AH
|
24V 53AH
|
48V 53AH
|
48V 53AH
|
48V 53AH
|
48V 53AH
|
|
Maximal power consumption [W]
|
50
|
300
|
800
|
1000
|
1600
|
3200
|
|
Humidity [%]
|
10 – 90%
|
10 – 90%
|
10 – 90%
|
10 – 90%
|
10 – 90%
|
10 – 90%
|
|
Operating ambient temperature [℃]
|
-20 – 50°C
|
-20 – 50°C
|
-20 – 50°C
|
-20 – 50°C
|
-20 – 50°C
|
-20 – 50°C
|
|
Laser class
|
IV
|
IV
|
IV
|
IV
|
IV
|
IV
|
|
Max Working distance [m]
|
30
|
90
|
200
|
300
|
350
|
400
|
|
Battery weight[kg]
|
8.85
|
12.6
|
12.6
|
12.6
|
12.6
|
25.1
|
|
Output bandwidth [cm]
|
270cm±10cm
|
270cm±10cm
|
270cm±10cm
|
270cm±10cm
|
270cm±10cm
|
270cm±10cm
|
|
Battery life [H]
|
2
|
2
|
4
|
3.5
|
2
|
2
|
