Raptor20/30/50/100/200/500

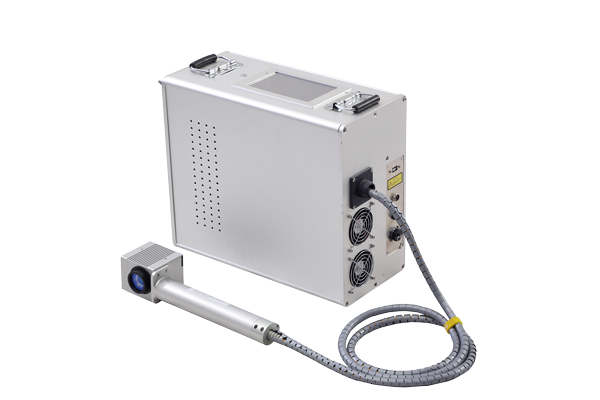

Removable laser cleaning equipment

Product Details

● Oxide removal

● Surface preparation before bonding

● Semiconductor surface pretreatment before packaging

● Sand and stone wall cleaning

● Cleaning of stone carvings

● Mold removal

● Surface preparation before welding

● Precise metal stripping

● Mobile phone screen coating cleaning

● Nuclear power plant reactor pipeline cleaning

● Pretreatment before spraying

● Electrode cleaning

● Pretreatment of brake disc before powder spraying

● Pretreatment before welding power battery terminal

● Small area aircraft skin peeling

Parameter

Description	Raptor20/30	Raptor50	Raptor100	Raptor200	Raptor500
Size (h x w x d) [mm³]	Approx.640x500x240	Approx.640x220x380	Approx.500x450x225	Approx.500x450x225	Approx.14601020780
Weight (approx.) [kg]	30	50	50	50	150
Cooling system	internal air cooling system	internal air cooling system	internal air cooling system	internal water cooling system	internal water cooling system
Laser power [W]	20/30	50	100	200	500
Wavelength [nm]	1064	1064	1064	1064	1064
Power supply (incl. quick charger)	24V DC /220V AC	24V DC /220V AC	220V AC	220V AC	24V DC /220V AC
Maximal power consumption [W]	250-350	460	400	1000	2000
Min / Max ambient temperature [°C]	5-40	5-40	5-40	5-40	5-40
Humidity [%]	10-95	10-95	10-95	10-95	10-95
Laser class	IV	IV	IV	IV	IV
